30kva 40kva online ups power unit high frequency ups for data center
Technical data:
| Model | HP3310H | HP3315H | HP3320H | HP3330H | HP3340H | HP3360H | HP3380H |
| Capacity | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | 60KVA/48KW | 80KVA/64KW |
| Phase | 3 Phase in and 3 phase out |
| Input |
| Voltage Range | 210-475 VAC |
| Frequency Range | 40Hz~70Hz, 56/60Hz(AutoSensing) |
| THDI | ＜3% |
| Power Factor | ＞0.99 |
| Double mains input | Support |
| Battery |
| Battery Type | Valve regulated lead acid(VRLA) battery |
| DC voltage | ±192VDC(defult),±168,±180(adjustable) |
| Output |
| Output voltage | 380V/400V/415VAC (1±1%) VAC |
| Frequency | 50/60 Hz |
| Power Factor | 0.8 |
| Overload Capability | 125%10min |
| 150%1min |
| Machine efficiency | 93% | 93% | 93% | 93% | 93% | 94% | 94% |
| ECO Mode | 98% |
| Others |
| Speed adjustable fan | Support |
| LCD indicators | UPS Status and instructions in both English and Chinese |
| input/output voltage,current,frequency,battery voltage,charging current value,discharging current value,fault display,fault,warning |
| LED | UPS running condition |
| Warning device | Indicator flash and Buzzer sound |
| Communication ports | RS-232,AS400,RS485,Service,EPO,EXT.BATTERY TEMPPROBE,Intelligentslot |
| Environment |
| Temperature | 0-40℃ |
| Humidity | 10-95% |
| Physical |
| Net.Weight | 78KGS | 80KGS | 82KGS | 110KGS | 114KGS | 282KGS | 306KGS |
| Gross Weight | 118KGS | 120KGS | 122KGS | 160KGS | 164KGS | 365KGS | 380KGS |
| Size(mm) | 420X663.5X956 | 470X710X1150 | 600X800X1850 |

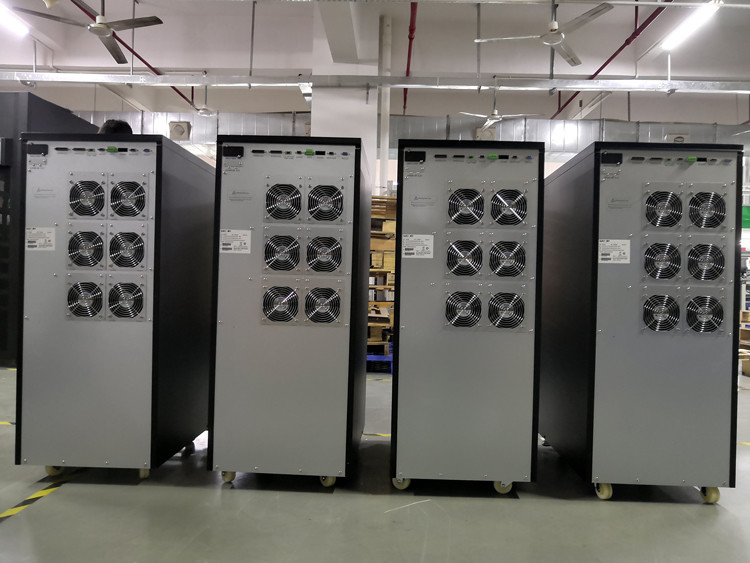

Product Picture:
Our service:
The service we can supply:
1.10 years factory, engineers with 15years experience average
2. Supply OEM/ODM service----the logo,color,plugs and sockets,LED/LCD display,USB port,RJ45/11 port, etc.
3.Samples/Small order for testing welcomed.
4.Any customized design is welcomed.
5.1-3 years warranty, provide technical training
6.Provide 365days,7*24hrs hot-line service to user to advisory for the problems of the shangyu service, products, technical, business and fault repair, service Hot-line is 400-0505-800
Why choose Shangyu?
1. 20 years experience engineers
2. 5 years UPS and UPS Battery export experiences
3. 10 years UPS and UPS Battery manufacturer experiences
4. 3 years of high-level OEM Experience
5. 200 Employees.
6. 5,000 square meters Factory Size (Sq.meters)
7. 10,000pcs Monthly Capacity
8. Export Percentage: 50%
9. Hi-tech Advanced R&D Team
10. Certifications--Applied with CE,TCL,ISO 9001,ISO14001 etc
11. 1 years warranty for UPS & UPS Battery.
12. Supply the technology training.
